Tile Roof Solar Panel Mounts- Hook Solution

Tile Roof Solar Panel Mounts- Hook Solution

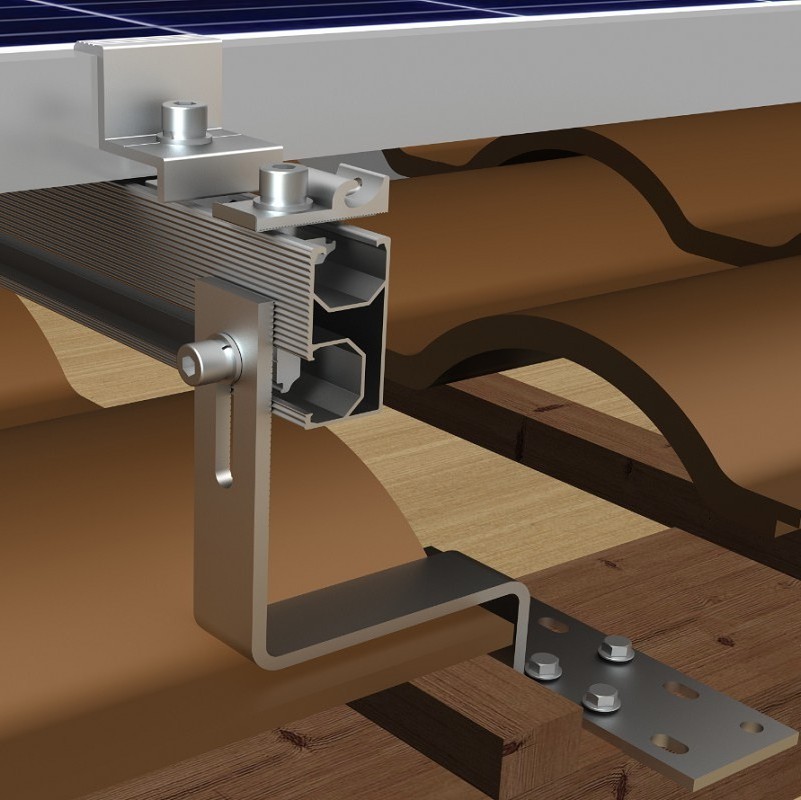

SunModo’s EZ Tile Hook Mount product line allowing mounting of solar PV systems on most tile roofs. We offer 4 choices of hook for vertical rail orientations and 4 hooks for flat mounting of strut type rails. The hooks provide a nominal 110 pound load and uplift capability when mounted into roof trusses with two 1/4 x 3-1/2 inch long Roofing Screw (included).

Key Features and Benefits:

• The EZ Tile Hook Mounts accommodate a variety of tile heights.
• Multi-screw mounting plate allows hook to be positioned to bolt onto roof truss.

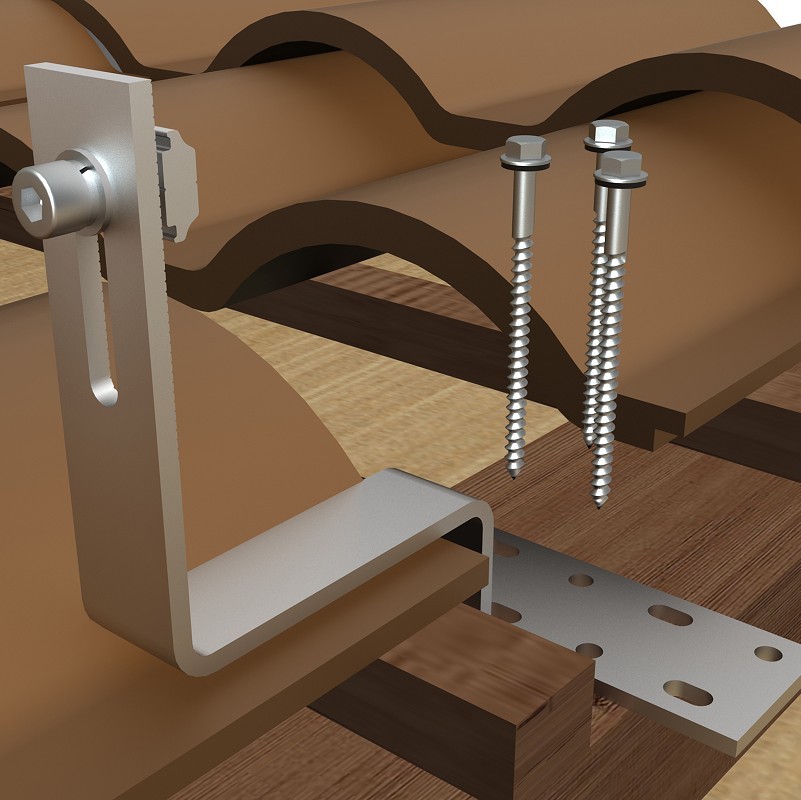

• All Hooks supplied with two 1/4 x 3-1/2 inch long stainless steel Roofing Screws with Sealing Washers for maximum strength mounting and protection.
• All Hooks have an attached EPDM Hook Base Gasket between hook and roof surface.
• Side-rail mounting and top to bottom of strut channel mounting versions allow maximum flexibility.
• Heavy duty one-piece stainless steel design provides strong support for PV systems; tested to 122 lbs. uplift and 130 lbs. load capability (by independent test lab on K10169).

TECHNICAL DATA

• Application: Tile Roof

• Material: High grade aluminum, 304 stainless steel hardware
• Finish: Clear Anodized
• Warranty: 20 years
