Composite Shingle Roof Solar Panel Mounting with L foot

Composite Shingle Roof Solar Panel Mounting with L foot

SunModo’s best-selling EZ Roof Mount is the industry standard for PV system mounting on any composite shingle roof.

Our patented easy-to-use flag-ship product anchor hundreds of MW in installed capacity.

Save time, hassle, and call-backs by using EZ Roof Mount for any composite shingle roof.

Specially designed with sealing point protected from elements, the kit (both lag bolt and decking screw version) is IAPMO certified for waterproofing

and structural integrity.

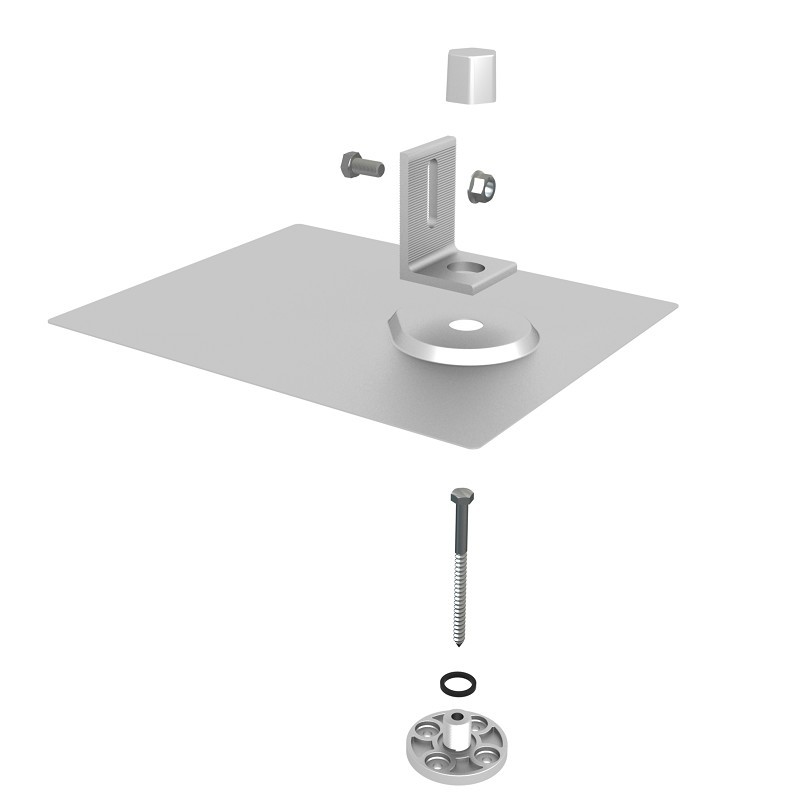

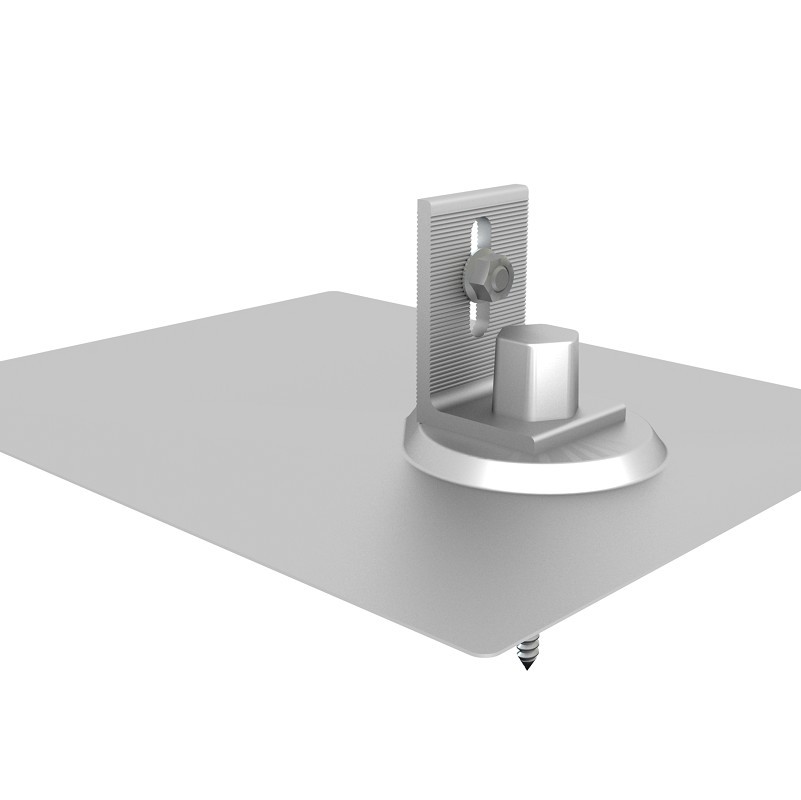

The kit includes one flashing (10.00 x 12.48 x 0.04inches) , one versatile aluminum base designed for multiple configurations, one EZ L-Foot and all hard-ware.

The EZ Roof Mount Advantage

• Leak-proof design protects sealing points from elements.
• ICC Certified for both rafter and decking solution.
• Exceptional resistance to corrosion and wear.
• A wide variety of L-feet and standoffs available.
• Surprisingly easy to install!

KEY FEATURES

• Raised teardrop design diverts water from the roof penetration
• 360-degree L foot positioning, serrated L foot on both sides for rail mounting.
• A wide variety of L-feet and standoffs available.
• Versatile mounting option includes direct-to-decking for easy installation.
• ICC Certified for both rafter and decking solution

TECHNICAL DATA

• Application: Composite shingle
• Material: High grade aluminum, 304 stainless steel hardware
• Finish: Silver or black powder coating
• Flashing Size: 10 x 12.48 x 0.04 inch
• Roof Attachment: Rafter and Decking

• Structural integrity: IBC and IRC Compliant
• Warranty: 20 years
