Trapizoidal Corragated Metal Roof Solar Panel Mount

Trapizoidal Corragated Metal Roof Solar Panel Mount

The RidgeBridge Mounts are compatible with corrugation pitch heights ranging from 3/4” to 1-1/2”.

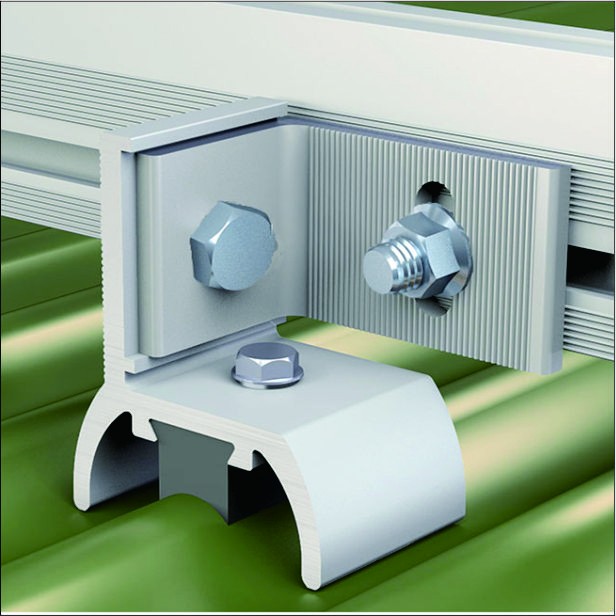

The kit can be combined with L-Adaptor to change the orientation of rail at right angles to corrugations.

Single screw penetration mount on wood or metal purlins for fast and easy installation.

Choice of 2 EPDM gaskets for a superior water tight seal.

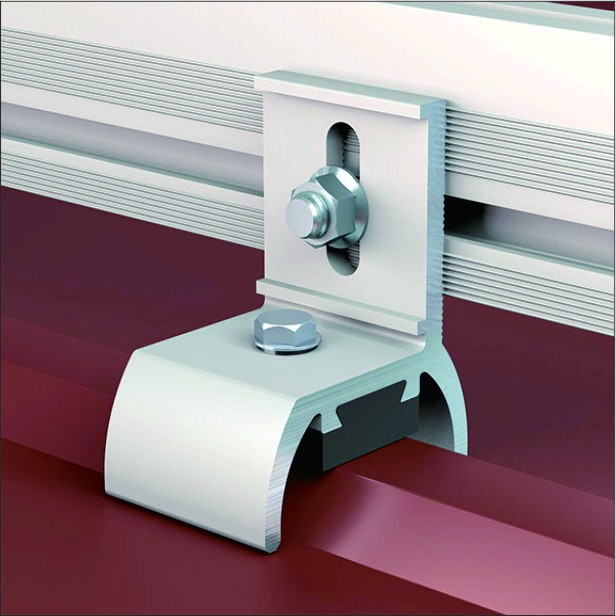

The vertical slot feature provides adjustment to the solar array when roofing is uneven.

Durable aluminum anodizing finish for increased weather corrosion resistance.

The RidgeBridge Mounts Advantage

• Designed for Maximum flexibility.
• 3 bracket sizes fit almost any rolled metal roof profile.
• Single screw penetration mount on wood or metal purlins for fast and easy installation.
• Choice of 2 EPDM gaskets for a superior water tight seals.
• The Vertical slot feature provides adjustment to the solar array when roofing is uneven.
• Durable aluminum anodizing finish for increased weather corrosion resistance.

TECHNICAL DATA

• Application: Tile Roof

• Material: High grade aluminum, 304 stainless steel hardware
• Finish: Clear Anodized

• Roof Attachment: Wood or metal purlins
• Structural integrity: IBC and IRC Compliant
• Warranty: 20 years
